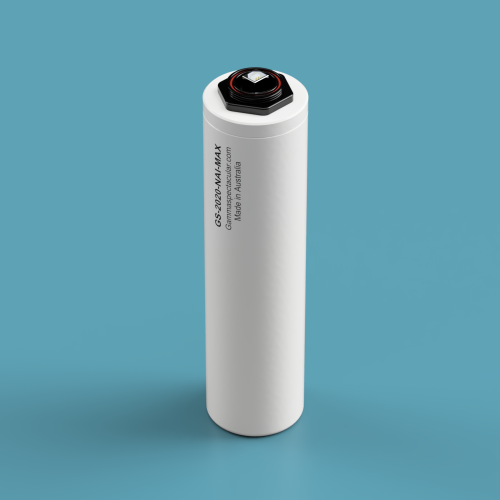

High Speed Portable Gamma spectrometer with NaI(Tl) Crystal
The GS-2020-NAI-MAX is a 2x2" NaI(Tl) detector with integral high speed spectrometer, this detector can count up to 100,000 cps with excellent resolution.
It connects directly to a PC and works with free open source software called Becqmoni.
PC, Mac and Android Software

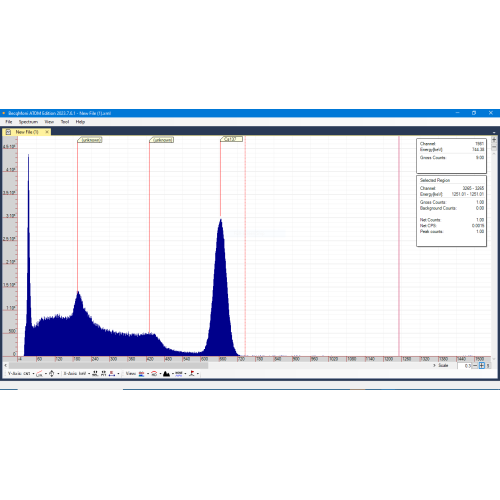

Choose between Becqmoni Atom (PC only) or Impulse (PC or Mac) software both software have unique features which may suit your experiments. The spectrometer will also work with an Android smartphone or tablet.
Software
Includes
1 x Gamma Detector with 2x2" NaI(Tl)
1 x Water resistant USB cable 2.0 meter
1 x Poly Propylene Instrument case
1 x Manual
Made in Australia
| Specifications | Value |
|---|---|
| Scintillation Crystal | 52x52 mm Encapsulated NaI(Tl) |
| Resolution | < 7.5% |
| Photomultiplier | Hamamatsu R6231 |
| Housing | Aluminium 1.0 mm (+-0.2) |
| Finish | White powder coat |
| Dimensions | 250 x 63 mm |
| Connector (on detector) | USB Type-B |
| USB Cable length | 2 meter |
| Power consumption | 170 mA |
| Max Channels | 8192 |
| Communication protocol | UART over USB |
| Communication speed (rec) | 600,000 Baud |
| Bias Voltage | Factory Preset |
NaI(Tl) Gamma Spectrometer 2"
- Brand: Gammaspectacular
- Product Code: GS-2020-NAI-MAX
- Availability: 5
-
USD $2,800.00
Tags: Gamma spectrometer, nai detector, scintillation detector, usb spectrometer
