Digibase MCA With 14 Pin Socket

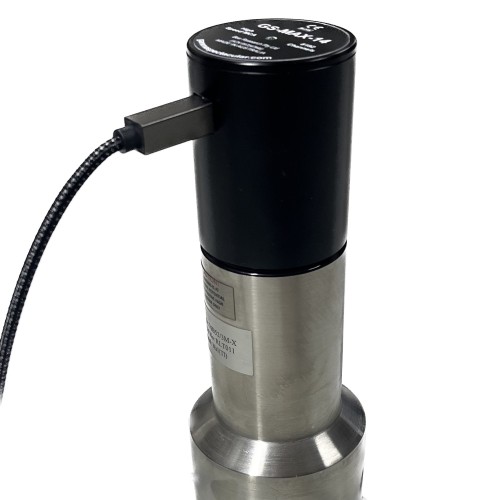

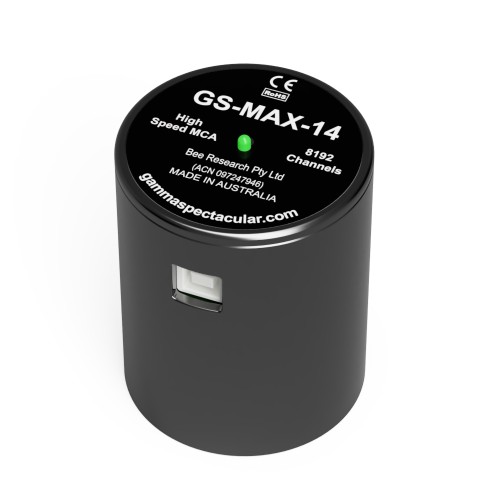

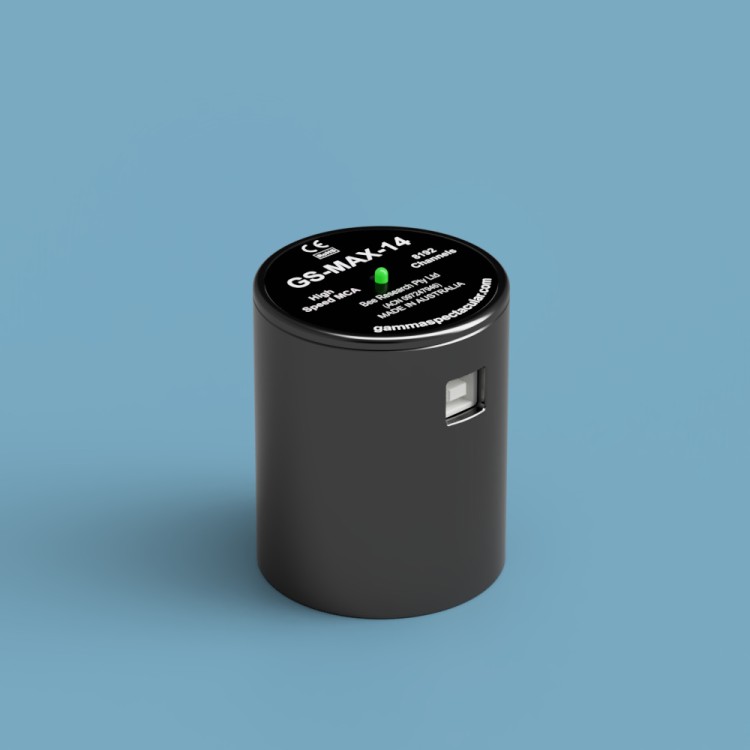

The GS--MAX-14 is a digital USB multi channel analyzer with 14 pin socket, the MCA will work with almost any PMT based scintillation detector with a standard 14 pin socket and can count up to 100,000 cps with excellent resolution.
It connects via USB to a PC and comes with powerful open source software which is absolutely free. Bias voltage and other hardware variables can be changed by sending commands to the MCA from the software.
PC Software
Becqmoni software comes with all the features you expect of a professional gamma spectroscopy system, background subtraction, isotope identification and more.
Android Software
This product will also work with Atom-Spectra on Android, but you will most likely need a Type-B to Type-C USB cable (not supplied)
Included
1 x GS-MAX-14
1 x USB Type-B to USB Type-A
1 x Manual
Download Brochure
Made in Australia
| Specifications | Value |
|---|---|
| Bias Voltage | Adjustable from 500-1800V |
| Communication speed (rec) | 600,000 Baud |
| Communication protocol | UART over USB |
| Connector (on detector) | USB Type-B |
| USB Cable length | 1.2 meter |
14 Pin Digibase Style MCA
- Brand: Gammaspectacular
- Product Code: GS-MAX-14
- Availability: 8
-
USD $1,749.00
